| Material: | Aluminum : 99.6%, Copper : 99.95% |
|---|---|
| Finish: | Uncoated / Natural |
Conductivity : Aluminium 61.8% IACS (Min) Copper 99.7% IACS Aluminium Barrel are Chemically treated to reduce contact resistance and corrosion and are filled electrically conductive corrosion inhabitant with a jointing compound and capped.

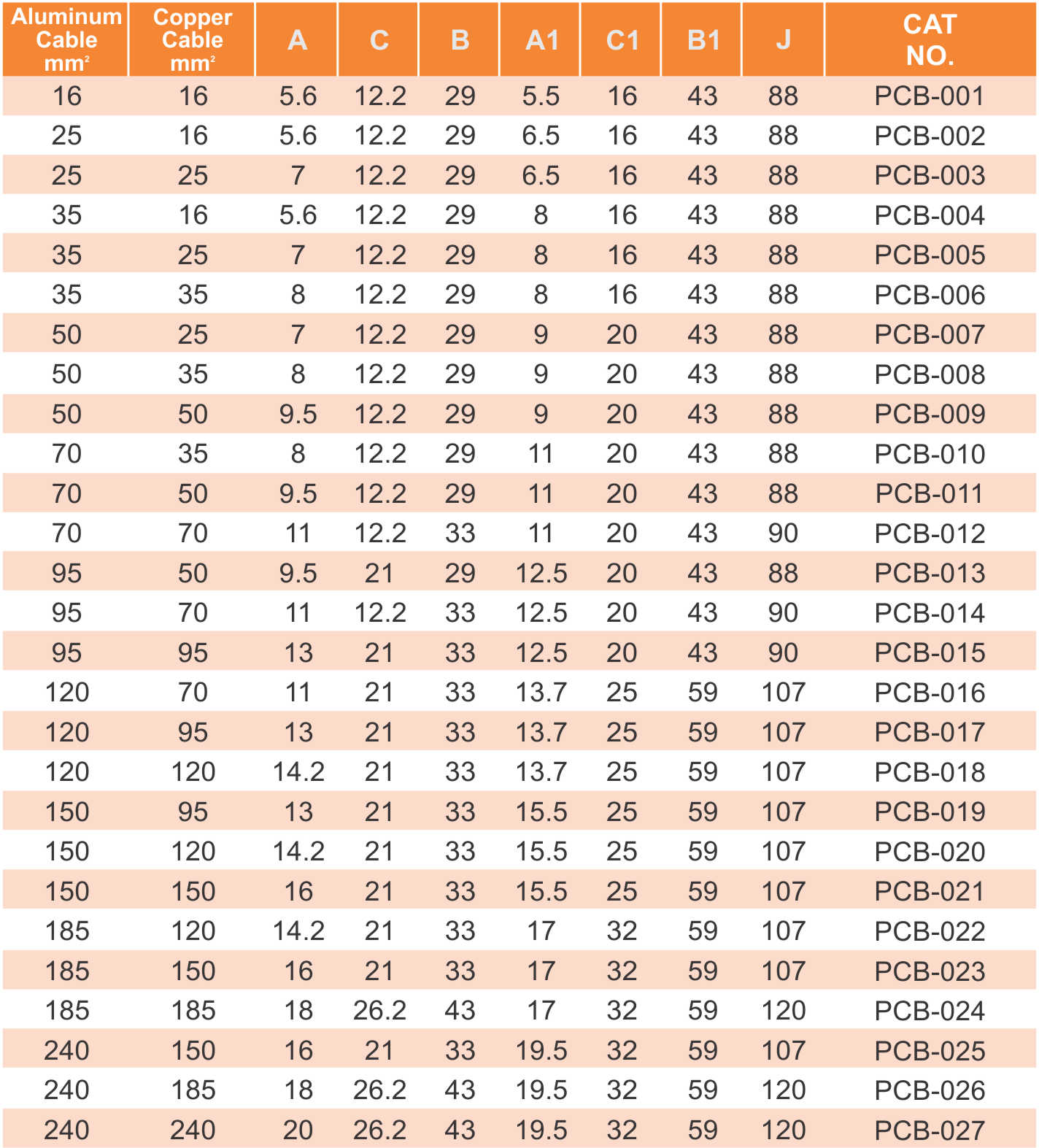

Note : 1. Combinations of BI-Metalic Compression Joints are designed on the basis of current carrying capacity of individual cables. 2. In case additional combinations are required same may will be provided against specific request.
