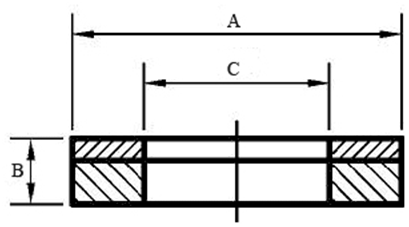

We are specialist in manufacture of Bimetal washers in copper + aluminium i.e. one side copper and one side aluminium. The copper and aluminium composition is in the ratio 80:20 (80% aluminium, 20% copper). These are plain washers but with two different metals on other side. We can also manufacture the same according to the composition of copper and aluminium that you require. These can be manufactured in mm & Inches as per your requirements, specifications & drawing or as per the sample provided by you.
Application :
Substation & witchyard bimetallic clamp and connectors, distribution, panel boards, bus ducts and bus bar chambers, bus ducts and bus bar chambers, isolators and switchgears
Purity :
Aluminium 99.00
Copper 99.00
Standard Composition :
80:20
85:15
80% Aluminium
20% Copper
Test Certificate :
Laboratory test certificate from government approved lab. Under third party inspection.
